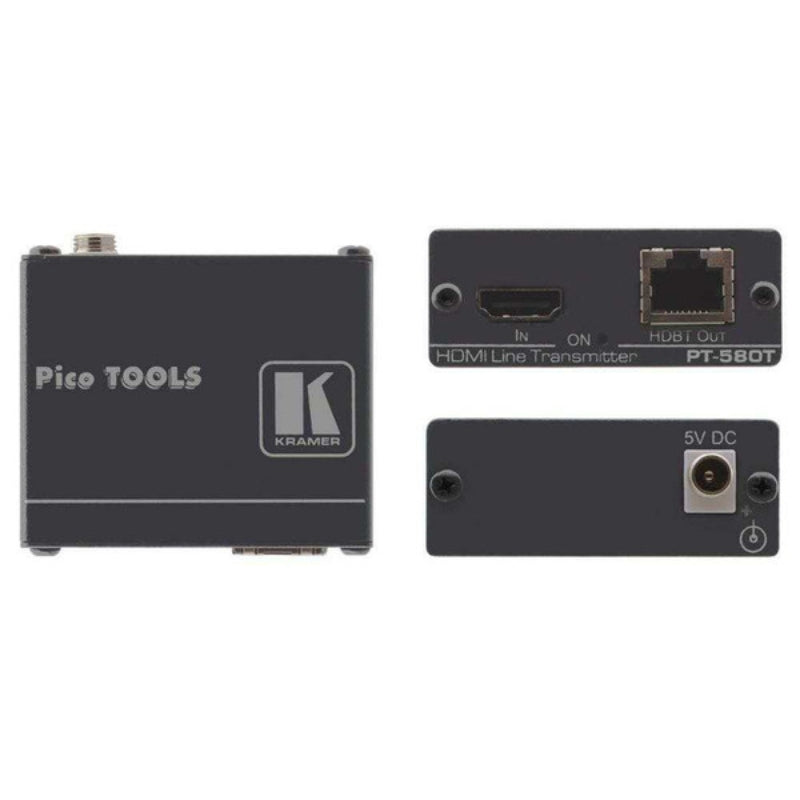

Kramer PT-580T 4K UHD HDMI over Twisted Pair HDBaseT Transmitter (micro)

Kramer PT-580T 4K UHD HDMI over Twisted Pair HDBaseT Transmitter (micro)

$200.00

| /

2 items left

The Kramer Electronics TP-580T HDBaseT Twisted Pair Transmitter is a high−performance transmitter for HDMI, bidirectional RS-232, and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver (sold separately). It supports transmission of 1080p, 2K, and 4K video signals over a distance of up to 230 feet.

  • Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel)
  • HDTV compatible
  • HDCP compliance
  • HDBaseT technology
  • HDMI supports deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, and CEC
  • 3D pass-through
  • EDID pass-through passes EDID signals between the source and display
  • 2K & 4K support

Transmits 1080p, 2K, and 4K video signals over a distance of up to 230' (70m)
Bidirectional RS-232 & IR interface commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit

Cable for optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables (sold separately)
Status LEDs for input, output, link, and power
